SounderLink AMT-2560 &Neo-10 ribbon tweeter Planar Transducer

Description

• Intelligent Personal Assistant: None
• Power Source: DC,AC
• Speaker Type: Bookshelf
• Brand Name: Sounderlink
• Remote Control: No
• Waterproof: No
• Audio Crossover: Full-Range
• Support Memory Card: No
• Playback Function: CD,None
• Battery: No
• Communication: AUX
• Material: Metal
• Feature: None
• Support APP: No
• Frequency Range: 60Hz-23KHz
• Cabinet Material: Metal
• Output Power: 60W
• Display Screen: Yes
• PMPO: 150W
• Voice Control: No
• Model Number: AMT-YDG920-01-8Ohm-60W
• Number of Loudspeaker Enclosure: 1
• Support Apt-x: Yes
• Display Screen: No
• Built-in Microphone: No
• Channels: 1
• Package: Yes
• Use: Home Theatre, Karaoke Player, Computer, Stage
• Speaker Type: Surround,center
• Audio Classification: Mini
• Type: Raw speaker unit
• Channels: 1
• Special Feature: Mini, Portable
• Speaker Structure: Hi-Fi Boxes
• Interface Type: None, SPDIF
• Intelligent Personal Assistant: None

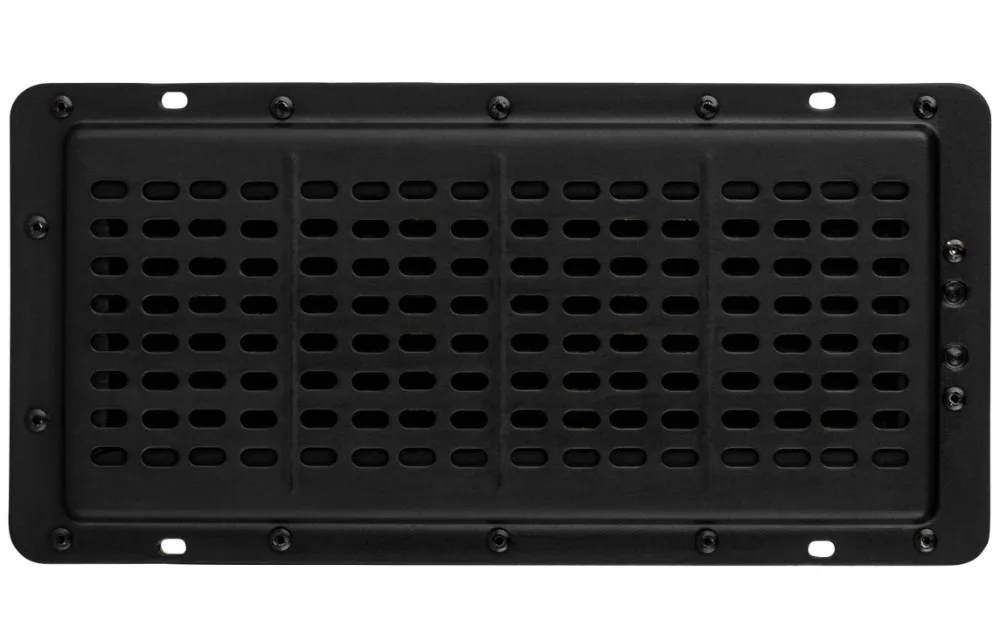

Sounderlink newest patent pending planar-magnetic transducer, the AMT-2560, offers excellent sound quality and is suitable for a number of applications as a high-performance wideband midrange. The AMT-2560’s low mass, high temperature diaphragm is directly driven for high power handling, outstanding transient response, and superior damping. A carefully engineered push-pull symmetrical motor structure produces a focused magnetic field for inherently low distortion and high sensitivity. Very low self-inductance minimizes intermodulation and phase distortion for increased accuracy and coherency. The resistive impedance of the AMT-2560 motor circuit presents a non-reactive load that is amplifier friendly.

Sounderlink AMT-2560 is not the original Bohlender Graebener Neo10,but performance meets 98% of B&G’S.

Background

The AMT-2560 is the next step in the line of Sounderlink planar ribbon drivers. The design goals include higher sensitivity, lower distortion, a lower usable cut off frequency, and higher power handling than previous offerings. This provides a solution to an important system goal – uncompromised reproduction of the human vocal range.

An additional benefit of the extended bandwidth is improved integration with a dynamic woofer. Seamless integration has been a challenge in practice historically and this is much easier to accomplish at 150-250 Hz than at an octave higher.

Construction Details

While the AMT-2560 has design principles similar to the Neo8, its construction has significant differences. The goal of extended low frequency reproduction dictated the use of a larger magnetic gap for higher excursion. Large magnets were used to further increase magnetic flux density in the gap. The magnet system is a symmetrical “push-pull” configuration that has proven to offer low distortion and improved sensitivity. The AMT-2560 also uses significantly thicker metal for its plates to provide the required dimensional stability when using a physically larger magnet structure. Plate shape also becomes analogous to diaphragm shape under excursion, which facilitates extended low frequency output. Specifically tuned fabric screens have certain acoustical resistance and play an important role in stabilizing and damping of the AMT-2560’s diaphragm. Finally, the AMT-2560’s unique diaphragm technology provides low distortion and the ability to reproduce signals down to 150Hz, thus achieving the driver’s design goals.

FEATURES
• sounds fantastic with wide dispersion
• Low- mass pleated PEN diaphragm
• Very fast transition, high power handling with strong Neodymium
• High detailed and dynamic output, very low distortion
• Rich Mid-range
• Deliver clean, airy, transparent sound,inherently natural and musically pleasing
