- Intelligent Personal Assistant: None
- Power Source: DC,AC
- Output Power: 45W
- Speaker Type: Bookshelf
- Brand Name: Sounderlink
- Remote Control: No
- Waterproof: No
- Support Memory Card: No
- Battery: No
- Communication: AUX
- Material: Metal
- Feature: None

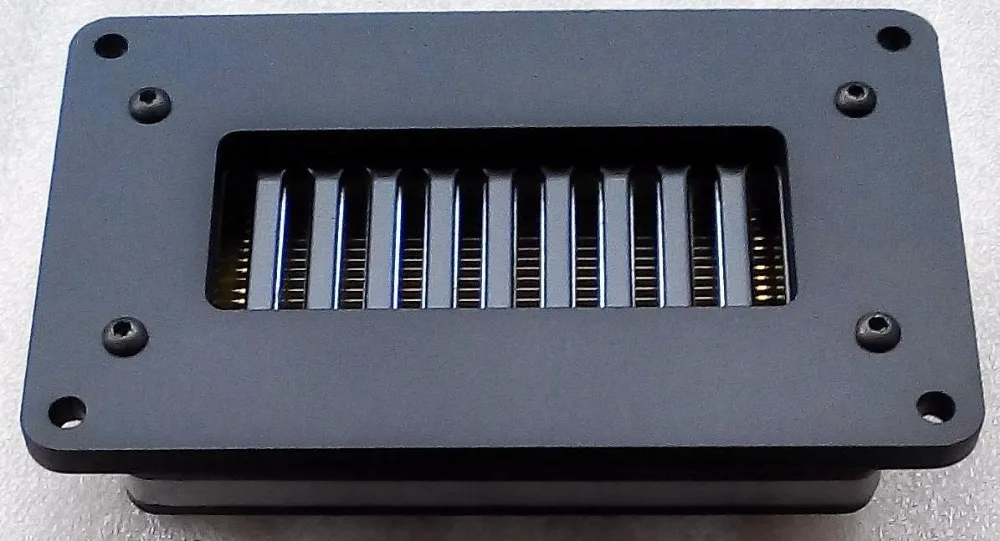

Sounderlink 1PC Superb planar transducer Aero Striction Tweeter AMT aluminum speaker air motion transformer tweeter
$119.99 – $139.99
Description
- Intelligent Personal Assistant: None
- Power Source: DC,AC
- Output Power: 45W
- Speaker Type: Bookshelf
- Brand Name: Sounderlink
- Remote Control: No
- Waterproof: No
- Support Memory Card: No
- Battery: No
- Communication: AUX
- Material: Metal
- Feature: None
- Support APP: No
- Frequency Range: 60Hz-23KHz
- Model Number: RT-16
- Cabinet Material: Metal
- Audio Crossover: Two-Way
- Voice Control: No
- Playback Function: None
- Number of Loudspeaker Enclosure: 1
- Support Apt-x: Yes
- Display Screen: No
- PMPO: 80W
- Display Screen: No
- Built-in Microphone: No
- Channels: 1
- Special Feature: Mini
- Speaker Classification: Tweeter
- Audio Output: Dual
- AirPlay: No
- Interface Type: None
- Speaker Type: Mini
- Wireless Type: None
- Communication: Wired
- Intelligent Personal Assistant: None
Features
| PARAMETER | 93dB | 95dB |
| Impedance | 8 ohms | 8 ohms |
| Power Handling | 40watts(RMS),80watts( max) | 40watts(RMS),80watts( max) |
| Sensitivity | 93dB@1W/1m | 95dB@1W/1m |
| Frequency Response | 8000 – 40,000Hz | 8000 – 40,000Hz |
| Diaphragm | Kapton&Alumium foil | Kapton&Alumium foil |
| Magnet System | Neodymium | Neodymium |
| Dimensions of plate | 116*72mm | 116*72mm |
| Voice coil | 72*26mm | 72*26mm |
| System | with enclosure damping felt. | with double magnetic system and enclosure damping felt. |
Please see clients feedback form Germany by Dr. Udo Zenke
I did the tweeter of AMT16BD at a short Horn (waveguide) and did some modifications with the crossover. The waveguide showed no advantage at on Axis response, but with the crossover I reached good linearity and great sound. The crossover works at 4 kHz and is a second order filter with 4,7UF and 0,15mH Inductance that improves linearity/SPL in the 6-8kHz range, but drops the Impedance at these frequencies down to 4Ohms. A further LCR Element reduces the peak in the 12 k-16 kHz range. Now I am happy to have a good result, the tweeter plays linear enough, very dynamic, without any hearable distortion and beyond 20 kHz.
Best regards,
Udo
