Description

  • Power Source: DC,AC
  • Battery: No
  • Communication: AUX
  • Support Apt-x: Yes
  • Voice Control: No
  • Feature: DTS
  • Built-in Microphone: No
  • Cabinet Material: Plastic
  • Support APP: No
  • Display Screen: No
  • PMPO: 30W
  • Frequency Range: 60Hz-23KHz
  • Intelligent Personal Assistant: None
  • Waterproof: No
  • Number of Loudspeaker Enclosure: 1
  • Output Power: 30W
  • Channels: 2 (2.0)
  • Support Memory Card: No
  • Brand Name: Sounderlink
  • Remote Control: No
  • Model Number: AMT-YDG4070-03-8Ohm-15
  • Display Screen: No
  • Audio Crossover: Full-Range
  • Material: Aluminum
  • Speaker Type: Bookshelf
  • Wi-Fi Music: DIY
  • Use: Home Theatre, Karaoke Player
  • Type: Active
  • Channels: 1
  • Speaker Structure: Reflective
  • Special Feature: Mini, Wireless, Portable
  • Speaker Classification: Tweeter
  • Interface Type: None, USB
  • Speaker Type: Mini
  • Intelligent Personal Assistant: None
Planar AMT Ribbon tweeter

Some loudspeaker designers use a planar-magnetic tweeter, sometimes called a quasi-ribbon. Planar magnetic tweeters are generally less expensive than true ribbon tweeters, but are not precisely equivalent as a metal foil ribbon is lighter than the diaphragm in a planar magnetic tweeter and the magnetic structures are different. Usually a thin piece of PET film or plastic with a voice coil wire running numerous times vertically on the material is used. The magnet structure is less expensive than for ribbon tweeters

  Rated Impedance 8Ω     Front Panel  Aluminum
  Sensitivity 94dB     Finish of Panel Powder coat
  Frequency Range 1500k~40k Hz     Diaphram KAPTON
  RMS Power  15W     Conductive Line Alumium foil
  Max Power 30W     Magnet  Neodymium
  Lowest crossover  3.5k Hz(recommend)     Terminal (mm) 5.5*0.5(+,-)





FEATURES
• ABS Plastic faceplate provides secure, stable mounting
• Low- mass pleated Kapton diaphragm
• Very fast transition, high power handling with Strong Neodymium
• High detailed and dynamic output, very low distortion
• Linear impedance
• Clear & Nature high frequency

PARAMETER

Impedance

8ohms

Power Handling

 15watts(RMS),30watts( max)

Sensitivity

93dB@1W/1m

Frequency Response

1,500 – 33,000Hz

Diaphragm

Kapton&Alumium foil

Magnet System

Neodymium

Dimensions

Overall Outside Diameter4″ x 0.76″

Net. Weight

115gram

Recommend Crossover Frequency

2,300Hz

YDG-40-70-03-1YDG-40-70-03YDG-40-70-03-3YDG-40-70-03-2



Customer feedback and Diy artworks:

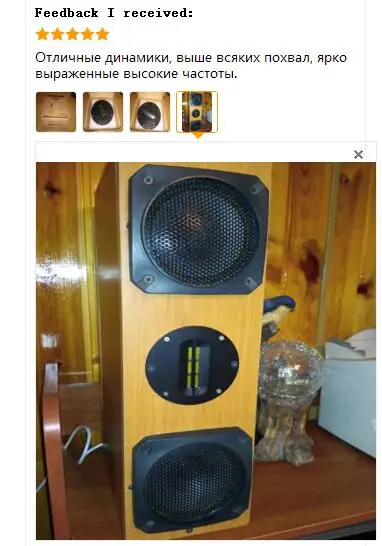

Ribbon tweeter buyer feedback-1Ribbon tweeter buyer feedback-2Ribbon tweeter buyer feedback-3

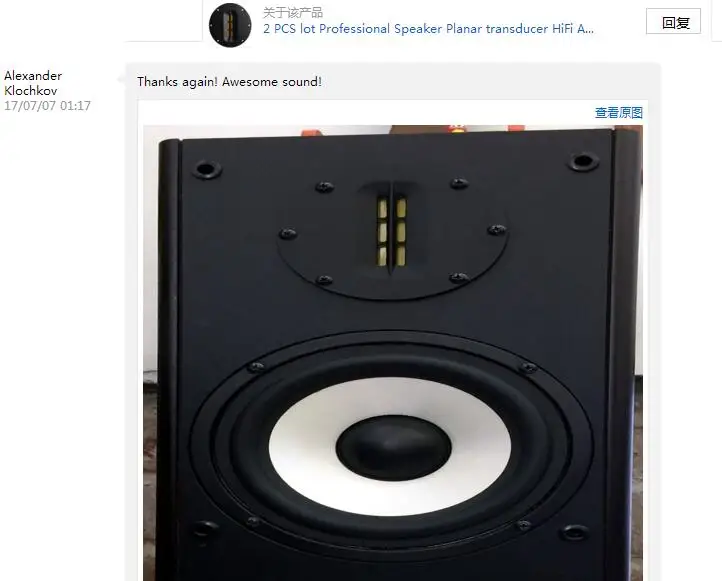

Thanks for Mr “Alexander Klochkov” comments “Thanks again! Awesome sound!”

ribbon tweeter

Payment:

1,For online order,We accepte Alipay on Aliexpress, You can pay using Visa, Mastercard, Western Union, Qiwi and Bank Transfer; All the payment are accepted through security payment processor ESCROW,Payment must be made within 3 days after place order.
2, For big quantity goods. We also accept the payment term of TT, West Union and Paypal

Delivery Details:
1: Woldwide Shipping.(Except some countries and APO/FPO address)
2: The orders processed timely after payment verification.
3: We only ship to confirmed order address, your order address Must Match yourrecipient address.
4: Service Transit Time is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
5: If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!

Returns & Refunds:
1: 12 months Manufacturer’s Warranty. Buy with confidence! Accessories come with a 1 month warranty.
2: If you are not satisfied when you receive your item, please return it within 30 days for a replacement or money back. Please contact me before you return it.
3: Defective items MUST BE reported and returned to us within the warranty period (and in the original packaging, if possible). You must tell us what the defect is and give us your order number.
4: Return shipping cost be paid by the Buyer.
Customer OEM design based on 1000 Sets, Please email us when you need such service
